Tension Amplifier Comparison Chart

Compare the features of all DFE tension amplifiers.

    Available Q1 2021

  TA1 TA500 TI17C TI18C TI22 TI30

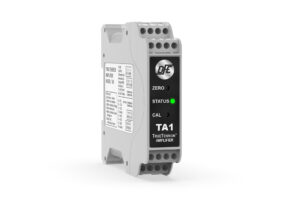

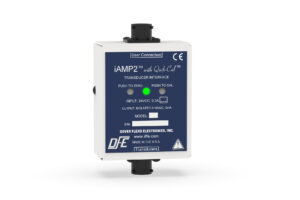

Features TA1 TrueTension Amplifier TA500 EIP Tension Amplifier TI17C TrueTension Amplifier TI18C True Tension Amplifier TI22 Inline Tension Amplifier TI30 FireGuard2 Intrinsically Safe Tension Amplifier
115/230 VAC Input Power
Requires P/N 144-0030 Requires P/N 144-0030 Yes Requires P/N 144-0030 Requires P/N 144-0030 Requires P/N 144-0030
24 VDC Input Power Yes Yes No Yes Yes Yes
Isolated 0-10 VDC Output Yes Yes Yes Yes Yes Yes
Isolated 4-20 mA Output Yes Yes Yes (option) Yes (option) Yes (option) Yes
Ethernet Connectivity
No Yes No No No No
0-1 mA Output to Tension Meter No No Yes Yes Yes Yes
Meter Damping (External)
No No Yes Yes No Yes
Available Mounting Styles Din Rail Clip, Keyhole/Screw Din Rail Clip Din Rail Clip, Keyhole/Screw Din Rail Clip, Keyhole/Screw Din Rail Clip Keyhole/Screw
Dual Calibration (Cal A/B) Yes Yes Yes Yes No Yes
Tension Limit Switch No No Yes (option) Yes (option) No No
Built-In Diagnostics
Yes Yes No No No No
Intrinsically Safe No No No No No Yes
CE-Marked Yes Yes Yes Yes Yes Yes
UL-Listed
No No Yes (with cover option) Yes No Yes
