90 Series Dual Disc Pneumatic Brake

Named for its 9″ diameter discs, the 90 Series pneumatic brake provides steady tension control within a torque range of 14 to 3,000 lb-inches.

As an integral part of a high-performance unwind package, the 90 Series Brake delivers the appropriate torque level needed for a particular application by allocating actuation of the appropriate number of cylinders, from one up to four. The term ’90 Series’ is derived from ‘9’ – the brake diameter in inches, and our use of a second digit to signify the number of cylinders that are installed on the brake.

Featuring heavy-duty, cast iron disc construction and expanded cooling surfaces for rapid heat dissipation, 90-Series brakes also feature DFE’s time-proven Universal Actuator™ technology:

• Hassle-free changeout of worn pads, without tools, via push-button spring locks
• Limited-travel pistons that can’t scratch the disc
• Cylinder return springs that cannot puncture the diaphragm
• Able to be retrofit into dual disc brakes of other manufacturers
• DFE’s popular anti-squeal Silencer™ pad technology

To see if a brake in the 90 Series is the right size for your application please note its torque range listed below and review the 90 Series Brake section of DFE’s full Brake Catalog for detailed sizing information or contact an applications engineer for assistance.

OPTIONS & ACCESSORIES
Non-Standard Key (NSK) – For shafts having a different sized key other than the standardized ones usually used (option)
Mounting Plate – Flat plate for mounting the brake and guard if used
Metric Mounting Bolt – Metric mounting bolts for the actuators
Guard – Safety device to prevent people or objects from touching brake when in motion or hot
Guard Blocks – Allows installation of guard without mounting plate
Valve Assembly – Controls air supply for actuators

Do you have more questions about this product?
Complete the form below and a DFE Applications Engineer will contact you shortly.



DFE does not share information with 3rd party advertisers.

MECHANICAL
Disc/Hub Inertia: 7.9 slug-in2
Max. Torque: 3,000 lb-inches
Max. Heat Capacity: 10 hp @ 4500 rpm
Disc/Hub Weight: 28.4 lbs
Max. Shipping Weight: 45 lbs
Min. Shaft Length: 7.1 inches

Reference Documents

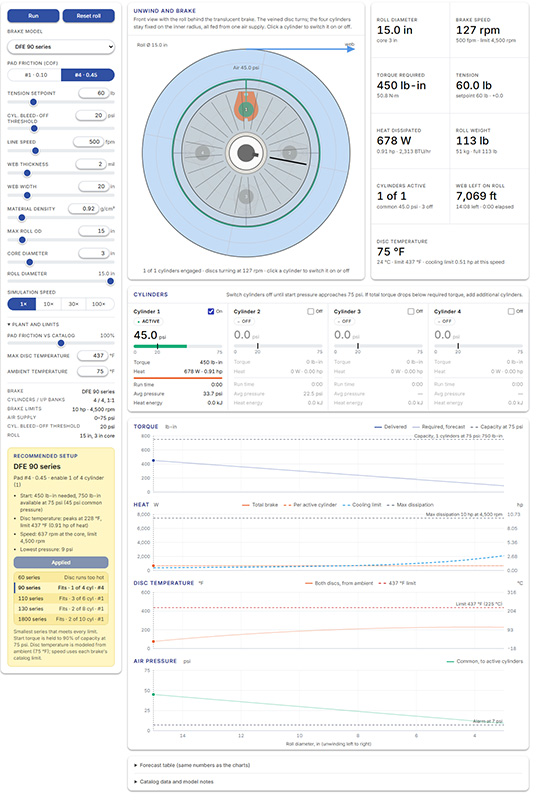

Brake Torque & HP Calculator

Error messages will display in calculator until all values have been entered.


Product Code Disc Diameter Hub Bore Max Torque
2D94-1.000-KIT 9.31 Inches 1.00 Inch** 3000 lb-in (339 N-m)

**Additional bore sizes available, see catalog for all options.
