TrueView™ 1100 Tension Indicator
The 1100TV is a compact, easy-to-use, touchscreen tension indicator with simultaneous 0-10 VDC and 4-20 mA signal outputs.
The TrueView™ 1100 tension indicator is an easy-to-use, rugged, touch screen tension indicator designed for use with high-sensitivity semiconductor strain-gage load cells. It features a bright 500 nit, 4.3″ impact-resistant touch screen display suitable for industrial environments. Housed in an alloy enclosure, it is machined from solid 6061-T6 billet aluminum for superior strength and durability. Engineered with flexibility in mind, the TrueView™ 1100 can be DIN rail-mounted, panel-mounted (with included bezel) or affixed to a vertical column with a band-style clamp.
The intuitive menu system provides quick access to calibration, operation and diagnostic functions. After selecting a tension range and unit of measure, calibrating the TrueView™ 1100 requires only 3 steps: Zero the transducers (load cells), hang a calibration weight and save the calibration to memory.
The TrueView™ 1100’s timelapse mode provides a tension history plot within an adjustable 30 second to 30 minute sliding window – useful for identifying process trends, anomalies or problems during operation. Adjustable display brightness and update intervals provide operators with eye-comfort and display damping capabilities specific to their needs. An integral lockout code restricts access to anyone not authorized to adjust the TrueView™ 1100’s configuration settings.
Simultaneous 0-10 VDC and 4-20 mA isolated tension outputs allow for integration with a PLC, drive or data logger. Built-in diagnostic capability identifies faulty load cells, incorrect wiring, calibration issues and amplifier ADC/DAC failure.
Measuring 4.9″ wide x 3.75″ tall, the TrueView™ 1100’s compact size, ease-of-use and flexible mounting options make it a natural choice for the OEM or end user seeking a reasonably-priced, next-generation interface.
The TrueView™ 1100 is backward-compatible with all DFE tension transducers manufactured since 1974.
FEATURES & BENEFITS
• Bright 500 nit, 4.3″ impact-resistant touch screen display
• Simultaneous 0-10 VDC and 4-20 mA isolated tension outputs
• Flexible mounting options – DIN rail clip, panel-mount (bezel) and band-clamp bracket
• Simple 3 step calibration procedure
• Operator lockout code
• Timelapse mode provides a tension history plot within an adjustable 30 second to 30 minute sliding window
• Rugged 6061-T6 billet aluminum enclosure provides superior strength and durability
• Compact size
• Backward-compatible with all DFE tension transducers manufactured since 1974
• Industry-leading 5 year tension-free warranty
Do you have more questions about this product?
Complete the form below and a DFE Applications Engineer will contact you shortly.
DFE does not share information with 3rd party advertisers.
ELECTRICAL
Power Input: 24 VDC +/- 10%, 0.1 ADC typical
Tension Outputs:
Output 1: 0-10 VDC isolated
Output 2: 4-20mA isolated
Processor: 32 bit
MECHANICAL
Enclosure: 6061-T6 Aluminum, black hard coat
anodized
Included Mounting Hardware: DIN rail clip, Bezel &
Z-bars, Clamp bracket, Screws
Dimensions: 4.9″ W x 3.75″ H x 1.36″ D
Weight: 1.5 lbs (681g)
REFERENCE DOCUMENTS

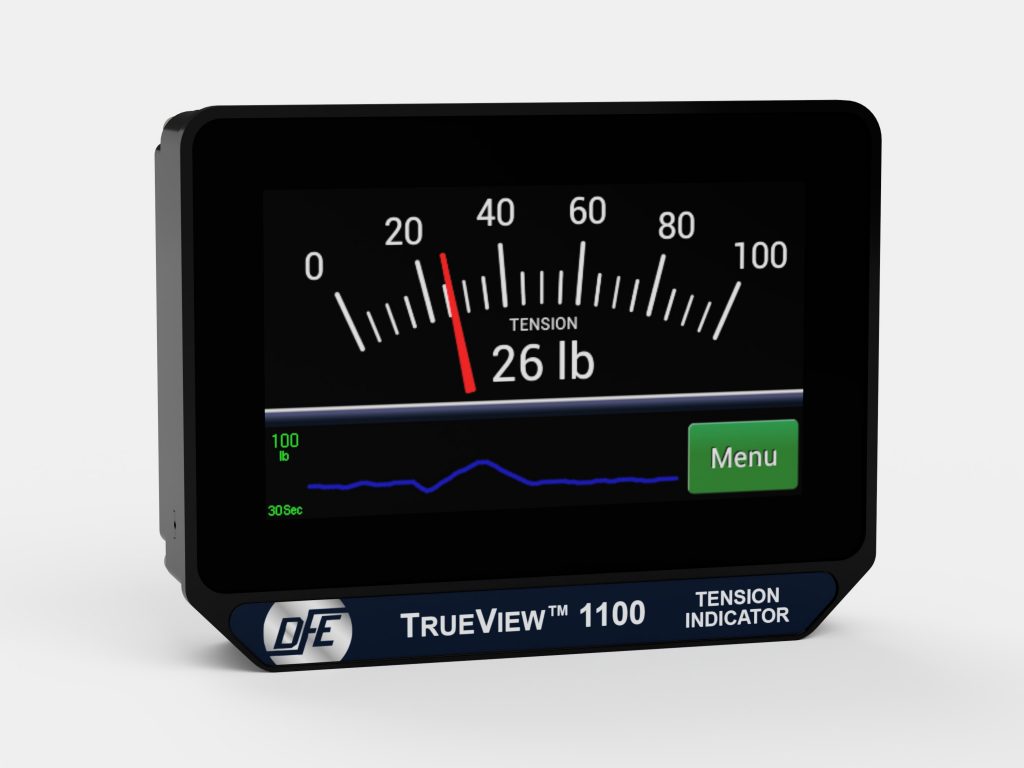

Indicator displayed with included mounting hardware for DIN rail, panel or pole mounting.
Complete the form to enable your file download
| Product Code | Signal Output | Input Power | Mounting Type |
| 1100TV | 0-10 VDC, 4-20 mA | 24 VDC | DIN Rail, Panel or Pole |
